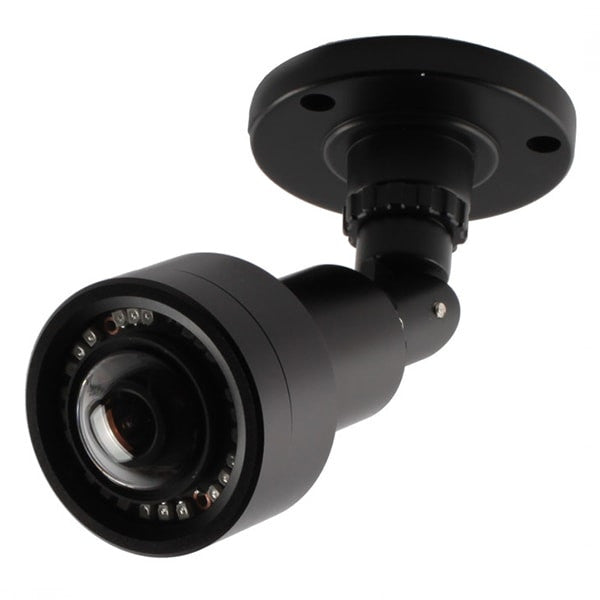

The CCTV Camera Pro, AHD-BL25 is a security camera that covers a 180 degree security wide angle. Complete with a 2.5 mm lens which is fish-eyed, the camera can be used both indoors and outdoors for video surveillance. It is an IP66 Weatheproof camera which protects it from water and harsh weather so it can be used indoors and outdoors.
This camera can be great for a variety of security surveillance purposes including for businesses, commercial, residential and government use. Connect it to a DVR system and you can easily record and back up your security recordings.
The AHD-BL25 monitors outside entrances which are located close to each other. It is a high definition camera with a weather proof rating of IP66. In its normal condition the camera captures both zero and low light conditions.
AHD-BL25 has tri-axis bracket, which is great for security cameras. This makes it possible to mount the camera at any angle. The camera can rotate in any direction, whether it is mounted horizontally or vertically.
The camera records through connection to DVR surveillance systems using hard wires, which are similar to those used in analog CCTV cameras known as RG6 or RG-59 cables.
This camera is also durable. If well taken care of, it can serve its users for many years.
The camera has a long range of capture. It contains 24 infrared LEDs which can make an illumination of about 32 feet. It also has an in-built display on the screen, which makes it possible to use advanced features, such as wide digital dynamic range, HD smart noise reduction, SENS-UP, and shutter speed.
AHD-BL25 allows for remote surveillance. It can be connected to a monitor using an HDMI converter. It can be directly merged remotely with an HDMITV or monitor. The camera can also be connected to a smart phone, which will make it possible for the user to view images from wherever they are.
You can log in wherever you are over the internet and view your cameras
The camera lasts for long even if used outdoors due to its high quality outer cover
180 Degree Video Surveillance Demo
The above video was captured by connecting an AHD-BL25 to a surveillance DVR using an RG59 coaxial cable. Please select 1080p video resolution in the lower right of the YouTube video player and watch in full screen mode to see the best quality video.
180 Degree Security Camera Photos
The above image was captured using a AHD-BL25. The camera was mounted in a medium sized room at CCTV Camera Pros office in West Palm Beach, Florida. This room is 29 feet wide by 16 feet deep. All of the lights are on in the room so that the camera is operating in daytime / color mode.
This is another image captured by the AHD-BL25. Mike is positioned directly below the camera to demonstrates how the fish eye lens provides an ultra wide angle. It is slightly less than 180 degrees but not by much. You will notice there is a small section of the room cutoff on the right size. The effective angle of the lens is actually 170 degrees. As with most 180 degree security cameras, it is slightly less than true 180 degrees.
This infrared surveillance image was captured by the AHD-BL25. Mike is positioned about 6 feet in front of the camera when all lights in the room were off. There is a small amount of ambient light from the fire exit signs at the exit of the front door.
This photo shows where the camera mounted to the ceiling by the CCTV Camera Pros sales floor at their office. You can see the camera on the left hand side of the ceiling.
Here is a close up view of the camera mounted to the ceiling tile.
Remote Mobile Camera View
iPhone App View
For testing the camera, the AHD-BL25 was connected to one of the Pro DVR's. In addition to providing a recording platform, the iDVR-PRO lets users login remotely over the Internet to view the camera live. The below image was captured while viewing the camera while using the iDVR-PRO Viewer app for iPhone.
Android Mobile App Viewing
This image was captured while using the iDVR-PRO Viewer mobile app for Android, while the camera was connected to the iDVR-PRO at CCTV Camera Pros office and the DVR accessible through WIFI on their demo network. This works the same as viewing the camera remotely through the Internet.
The PSPRO-12dc500 12V DC 500mA Power Supply, CCTV Camera, IP Camera, 2.1mm is also included with the camera so you can plug the camera directly into an outlet for use. The power input required is 100-240VAC 50/60Hz and the camera uses a 2.1mm plug which is compatible with almost all CCTV cameras on the market
